Polymer PTFE Plastic Automatic Molding Machine
Characteristics of PTFE Molding Machine
Molding Machines are divided into manual, semi-automatic and fully
automatic molding machines. Through continuous improvement of the
molding press technology, the equipment is more intelligent, more
stable, and more efficient.
The intelligent automatic type is controlled by PLC system, to set
the pressure, range, speed, quantity, and dwell time, and the
operation is simple.
With diverse design, the equipment can meet the different needs of
users, and be customized for customers.
The equipment runs stably for a long time, with lower noise. And
reduces costs by saving power and energy during pressure
maintenance.
Equipment and molds are made by special technology, corrosion
resistance, durable and with long service life.
The equipment design is simple and takes up little space.
Molding products have superior performance in terms of density and
tensile strength with no flash, no burrs.
Fully automatic moulding machine, automatic powder suction,alarm
when powder out ,and counting.
Fast molding speed with no powder flying out, save raw material. .
Molding is divided into pressing methods from top to bottom, bottom
to top and simultaneous double-sided pressing.
Molding process can directly mold the customer’s desired shape,
saving manufacturing procedure, material and process cycle.
Granulating material, self-flowing powder, non-self-flowing powder
can be used in molding machine.

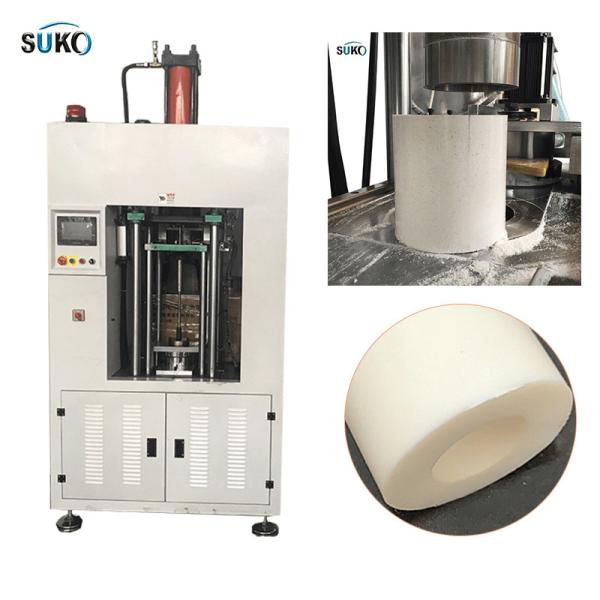

The molding machine is equipped with automatic push-out function
(as shown in the picture).
Equipment Operating Environment Requirements
The ground of the site is required to be level, and the site load
is not less than the design requirements.
The operating platform needs clean space to reduce dust ingress. It
is best to have ventilation ducts in the workshop to facilitate
ventilation.
Industrial power standard 380V 50Hz 3P, voltage can be customized
according to user needs.
The factory is equipped with power distribution cabinets,
compressed air and other supporting equipment.
The room temperature of the plant should be no more than 28 ° C.
Advantages of Polymer PTFE Plastic Automatic Molding Machine
- High precision: Polymer PTFE plastic automatic molding machines can
produce parts with very high precision, which is essential for many
applications.
- Repeatability: These machines can produce parts with consistent
quality, which is important for mass production.
- Efficiency: Polymer PTFE plastic automatic molding machines are
very efficient, which can save time and money.
- Versatility: These machines can be used to produce a wide variety
of parts, from simple to complex.
- Durability: Polymer PTFE plastic automatic molding machines are
made from durable materials, which means they can last for many
years.
Application Scenarios of Polymer PTFE Plastic Automatic Molding
Machine
- Automotive: Polymer PTFE plastic automatic molding machines are
used to produce a variety of parts for the automotive industry,
such as seals, gaskets, and bearings.
- Aerospace: These machines are also used to produce parts for the
aerospace industry, such as seals, gaskets, and insulators.
- Medical: Polymer PTFE plastic automatic molding machines are used
to produce a variety of medical devices, such as catheters, stents,
and implants.
- Electronics: These machines are also used to produce a variety of
electronic components, such as connectors, insulators, and
switches.
- Consumer products: Polymer PTFE plastic automatic molding machines
are used to produce a variety of consumer products, such as toys,
appliances, and furniture.
Polymer PTFE plastic automatic molding machines are a versatile and
efficient way to produce a wide variety of parts. These machines
are used in a variety of industries, including the automotive,
aerospace, medical, electronics, and consumer products industries.
3. Equipment Parameter
| Machine Type | SUKO-3T-01 | SUKO-20T-05 | SUKO-60T-05 | HGB-70 | PBM-180 | SAP-200 | Customerize |
| Pressure(T) | 3T | 20T-45T | 60T-95T | 10T | 60 T | 80T | 10-5000T |
| Power(KW) | 1.5 | 4 | 5.5 | 2.7 | 5.2 | 7.2 | — |
| OD Range Φ | 10-35 | 35-100 | 60-180 | 10-50 | 110 | 250 | 1-2500 |
| Thk Range(mm) | ≤12 | ≤12 | ≤15 | ‘2-6 | ≤110 | ≤10 | 3-100 |
| Output | 540 | 240-300 | 240-300 | 750-1500 | 300-1500 | 300-600 | — |
| Weight(KG) | 500 | 1300 | 2100 | 1100 | 1050 | 1500 | — |
| Area(m2) | 1.5 | 1.8 | 2.3 | 1.6 | 1.2 | 1.2 | — |
4. Equipment And mold Maintenance
Regularly check the height, cleanliness and temperature of the
hydraulic oil.
It is recommended to replace the hydraulic oil every six months.
Replaced worn seals timely.
The mold should be cleaned and maintained in time, and the surface
should be coated with a thin layer of protective oil.
5. After Sales Service
From the date of receiving the machine, the warranty period of all
machine accessories is one year. We provide free maintenance
guidance service during the warranty period.
If there is any problem with the accessories outside the warranty
period, please contact us in time to explain the problem, and we
will provide follow-up resolution within 24 hours.
If we have a local distributor, we can contact the local
distributor for cooperation.
All questions about the equipment can be consulted to us by mail,
video, telephone, etc.
6. Related Optional Equipment
| Name | Brief Description |
| Loosening Machine | To loosen the agglomerated raw materials or powder with excessive
humidity. |
| Powder Mixer / Powder & Auxiliary Mixer | To mix powder with liquid lubricant. |
| Oven / Sintering furnace | To heat the semi-finished products. |
| Recycled material crushing production line | Dicer, washing machine, crusher |
Please contact us for other PTFE equipment.
