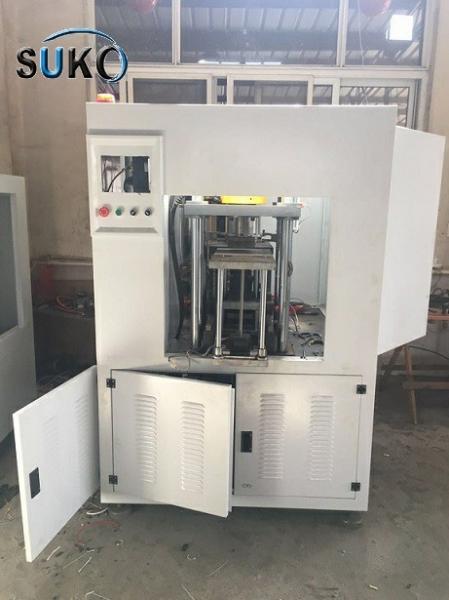

SUKO PTFE Gaskets Automatic Press Moulding Machine SK20TON For making
Bush, Rod, Hollow
Characteristics of PTFE Molding Machine
Molding Machines are divided into manual, semi-automatic and fully
automatic molding machines. Through continuous improvement of the
molding press technology, the equipment is more intelligent, more
stable, and more efficient.
The intelligent automatic type is controlled by PLC system, to set
the pressure, range, speed, quantity, and dwell time, and the
operation is simple.
With diverse design, the equipment can meet the different needs of
users, and be customized for customers.
The equipment runs stably for a long time, with lower noise. And
reduces costs by saving power and energy during pressure
maintenance.
Equipment and molds are made by special technology, corrosion
resistance, durable and with long service life.
The equipment design is simple and takes up little space.
Molding products have superior performance in terms of density and
tensile strength with no flash, no burrs.
Fully automatic moulding machine, automatic powder suction,alarm
when powder out ,and counting.
Fast molding speed with no powder flying out, save raw material. .
Molding is divided into pressing methods from top to bottom, bottom
to top and simultaneous double-sided pressing.
Molding process can directly mold the customer’s desired shape,
saving manufacturing procedure, material and process cycle.
Granulating material, self-flowing powder, non-self-flowing powder
can be used in molding machine.
The molding machine is equipped with automatic push-out function
(as shown in the picture).
Equipment Operating Environment Requirements
The ground of the site is required to be level, and the site load
is not less than the design requirements.
The operating platform needs clean space to reduce dust ingress. It
is best to have ventilation ducts in the workshop to facilitate
ventilation.
Industrial power standard 380V 50Hz 3P, voltage can be customized
according to user needs.
The factory is equipped with power distribution cabinets,
compressed air and other supporting equipment.
The room temperature of the plant should be no more than 28 ° C.
The PTFE Gaskets Automatic Press Moulding Machine is widely used in
various industries for the production of high-quality PTFE gaskets.
Here are some common application scenarios:
1. Chemical Processing Industry:
Production of gaskets for pumps, valves, pipelines, and other
equipment handling corrosive chemicals.
PTFE gaskets provide excellent resistance to acids, bases,
solvents, and other aggressive media.
2. Pharmaceutical Industry:
Manufacturing of gaskets for pharmaceutical equipment, such as
reactors, filters, and pipelines.
PTFE gaskets meet the stringent cleanliness and purity requirements
of the pharmaceutical industry.
3. Food and Beverage Industry:
Production of gaskets for food processing machinery, including
mixers, conveyors, and packaging equipment.
PTFE gaskets are non-toxic, odorless, and FDA-approved for food
contact applications.
4. Aerospace Industry:
Manufacturing of gaskets for aircraft engines, fuel systems, and
other critical components.
PTFE gaskets withstand extreme temperatures, pressures, and harsh
environments.
5. Automotive Industry:
Production of gaskets for engines, transmissions, and other
automotive components.
PTFE gaskets provide excellent sealing performance and durability
in demanding automotive applications.
6. Electrical Industry:
Manufacturing of gaskets for electrical connectors, transformers,
and other electrical equipment.
PTFE gaskets offer high electrical insulation and resistance to
arcing.
7. Medical Industry:
Production of gaskets for medical devices, such as implants,
surgical instruments, and diagnostic equipment.
PTFE gaskets are biocompatible and meet the stringent sterilization
requirements of the medical industry.
8. Other Industries:
Pulp and paper industry for gaskets in papermaking machinery.
Textile industry for gaskets in dyeing and finishing equipment.
Semiconductor industry for gaskets in cleanroom environments.
3. Equipment Parameter
| Machine Type | SUKO-3T-01 | SUKO-20T-05 | SUKO-60T-05 | HGB-70 | PBM-180 | SAP-200 | Customerize |
| Pressure(T) | 3T | 20T-45T | 60T-95T | 10T | 60 T | 80T | 10-5000T |
| Power(KW) | 1.5 | 4 | 5.5 | 2.7 | 5.2 | 7.2 | — |
| OD Range Φ | 10-35 | 35-100 | 60-180 | 10-50 | 110 | 250 | 1-2500 |
| Thk Range(mm) | ≤12 | ≤12 | ≤15 | ‘2-6 | ≤110 | ≤10 | 3-100 |
| Output | 540 | 240-300 | 240-300 | 750-1500 | 300-1500 | 300-600 | — |
| Weight(KG) | 500 | 1300 | 2100 | 1100 | 1050 | 1500 | — |
| Area(m2) | 1.5 | 1.8 | 2.3 | 1.6 | 1.2 | 1.2 | — |
4. Equipment And mold Maintenance
Regularly check the height, cleanliness and temperature of the
hydraulic oil.
It is recommended to replace the hydraulic oil every six months.
Replaced worn seals timely.
The mold should be cleaned and maintained in time, and the surface
should be coated with a thin layer of protective oil.
5. After Sales Service
From the date of receiving the machine, the warranty period of all
machine accessories is one year. We provide free maintenance
guidance service during the warranty period.
If there is any problem with the accessories outside the warranty
period, please contact us in time to explain the problem, and we
will provide follow-up resolution within 24 hours.
If we have a local distributor, we can contact the local
distributor for cooperation.
All questions about the equipment can be consulted to us by mail,
video, telephone, etc.
6. Related Optional Equipment
| Name | Brief Description |
| Loosening Machine | To loosen the agglomerated raw materials or powder with excessive
humidity. |
| Powder Mixer / Powder & Auxiliary Mixer | To mix powder with liquid lubricant. |
| Oven / Sintering furnace | To heat the semi-finished products. |
| Recycled material crushing production line | Dicer, washing machine, crusher |
Please contact us for other PTFE equipment.
