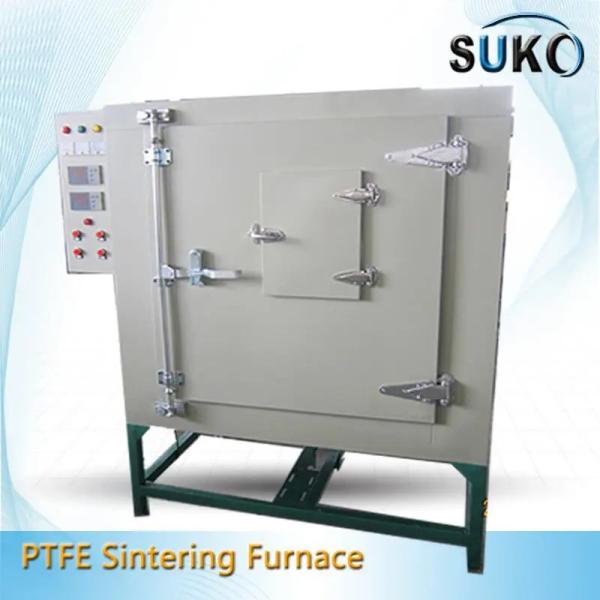

PTFE Industrial Nitrogen Sintering Furnace

Product Description: PTFE Industrial Nitrogen Sintering Furnace. Capable of paperless recording and group-unrestricted programming. Its sintering records can last one year. The multiple sintering furnaces can be operated at the same time and the remote control is available. PTFE Sintering Furnace Features: Sunkoo sintering Furnace deliver tight temperature control and temperature uniformity throughout the heated chamber providing an efficient and consistent sintering process from cycle to cyc...

Product Description:

PTFE Industrial Nitrogen Sintering Furnace. Capable of paperless recording and group-unrestricted programming. Its sintering records can last one year. The multiple sintering furnaces can be operated at the same time and the remote control is available.
PTFE Sintering Furnace Features:
Suko sintering Furnace deliver tight temperature control and temperature uniformity throughout the heated chamber providing an efficient and consistent sintering process from cycle to cycle. These ovens are commonly used in applications requiring a material to be formed without melting, such as: sintering a PTFE molded rods, sheets tubes etc.
ü It is mainly used to definite form under designated temperature after sintering completion of PTFE products, Technological requirements are not subject to limitations.
ü Special pipelines are installed at the air outlet to vent waste air along preinstalled pipelines without polluting workshop and environment.
ü The configuration of energy-saving heating components has characteristics of fast heating, electricity-saving and long application life.
ü By adopting hot air circulating principle, high rotating speed multi blade circular blower can diffuse hot air evenly with high wind rate.
ü Hearth liner and turn plate are made of stainless steel material with steady rotation, stable forming and high rate of finished products.

PTFE Industrial Nitrogen Sintering Furnace Application Scenarios:

1. Sintering of PTFE Products:
Sintering of PTFE tubes, rods, sheets, and molded parts
Improves mechanical strength, dimensional stability, and chemical resistance

2. Sintering of PTFE Composites:
Sintering of PTFE composites with fillers such as glass fiber, carbon fiber, or metal powders
Enhances properties such as wear resistance, thermal conductivity, and electrical insulation

3. Sintering of PTFE Coatings:
Sintering of PTFE coatings on metal, ceramic, or plastic substrates
Provides excellent non-stick, corrosion-resistant, and low-friction surfaces

4. Sintering of PTFE Membranes:
Sintering of PTFE membranes for filtration, separation, and gas diffusion applications
Creates porous structures with controlled pore size and distribution

5. Sintering of PTFE Medical Devices:
Sintering of PTFE implants, surgical instruments, and medical components
Ensures biocompatibility, durability, and resistance to chemical degradation

6. Sintering of PTFE Aerospace Components:
Sintering of PTFE seals, gaskets, and bearings for aerospace applications
Provides high-temperature stability, low friction, and resistance to harsh environments

7. Sintering of PTFE Automotive Components:
Sintering of PTFE seals, gaskets, and bearings for automotive applications
Enhances durability, reduces friction, and improves performance in demanding conditions

8. Sintering of PTFE Electronics Components:
Sintering of PTFE insulators, capacitors, and connectors for electronic devices
Provides electrical insulation, high-temperature resistance, and low dielectric loss

9. Sintering of PTFE Research and Development:
Sintering of PTFE prototypes and experimental components
Enables rapid prototyping and testing of new materials and designs

10. Other Applications:
Sintering of PTFE for sealing, packaging, and insulation applications
Sintering of PTFE for chemical processing, food processing, and textile industries

PTFE sintering furnace Specifications

1, coating sintering furnace;
2, steel-made furnace;
3, any curve, aircycling furnace;
4, program-controlled;
5, ISO9001 certificate;

Features of RFX Series as follows:
1. Single segment: There are only two mode of start-up heating and stop. The temperature inside the furnace can rise from normal state to designated state.
2. Multi-segment: 30 segments of different time and temperature can be programmed. The furnace can operate according to the temperature and time that have been set after being started up.
3. Multi-unit: 16 segments of different time and temperature can be programmed. It is invoked according to designated products, The furnace can operate according to the temperature and time that have been set after being started up.
4. Proportion: Within effective output range, its actual heating output can change in series to keep even temperature inside the furnace.
5. Integration: Instrument and heating apparatus are controlled by high-low pressure electrical isolation of modern electronic technology to ensure the safe operation of apparatus and equipment.
6. Automation: Circular blower and turnplate can stop and operate at the designated temperature. 7.Memory: Each sintering record can be taken down and recorded date can last for 365 days. Data can be copied into computer for reading and archiving by U disk according to specific request.

Technical Data:
